CUTCRAFT RS360G
910 mm of capacity, 4.80 m of length, electric start.
Available · CC-RS360G
- 910mm
- Maximum log diameter
- 20.8hp
- Engine power
- 4,800mm
- Maximum log length

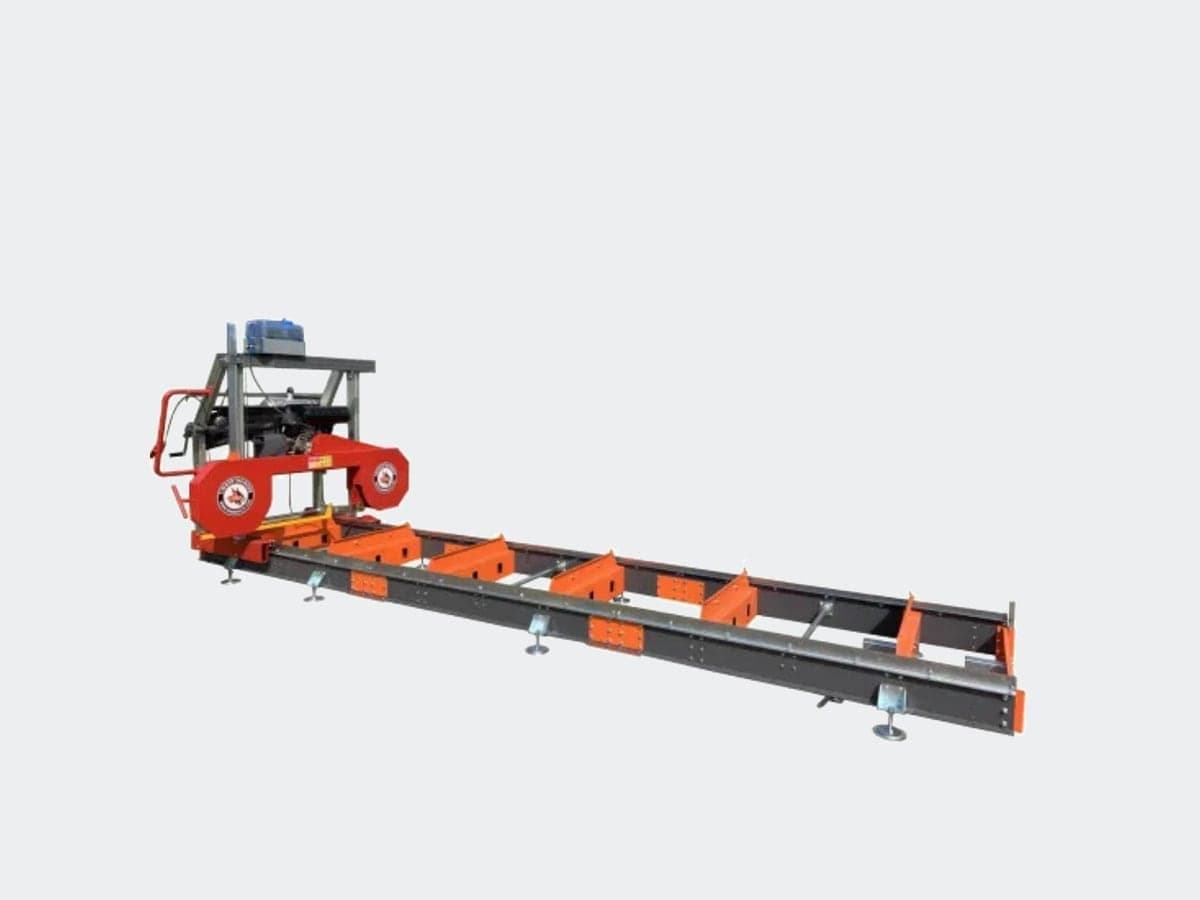

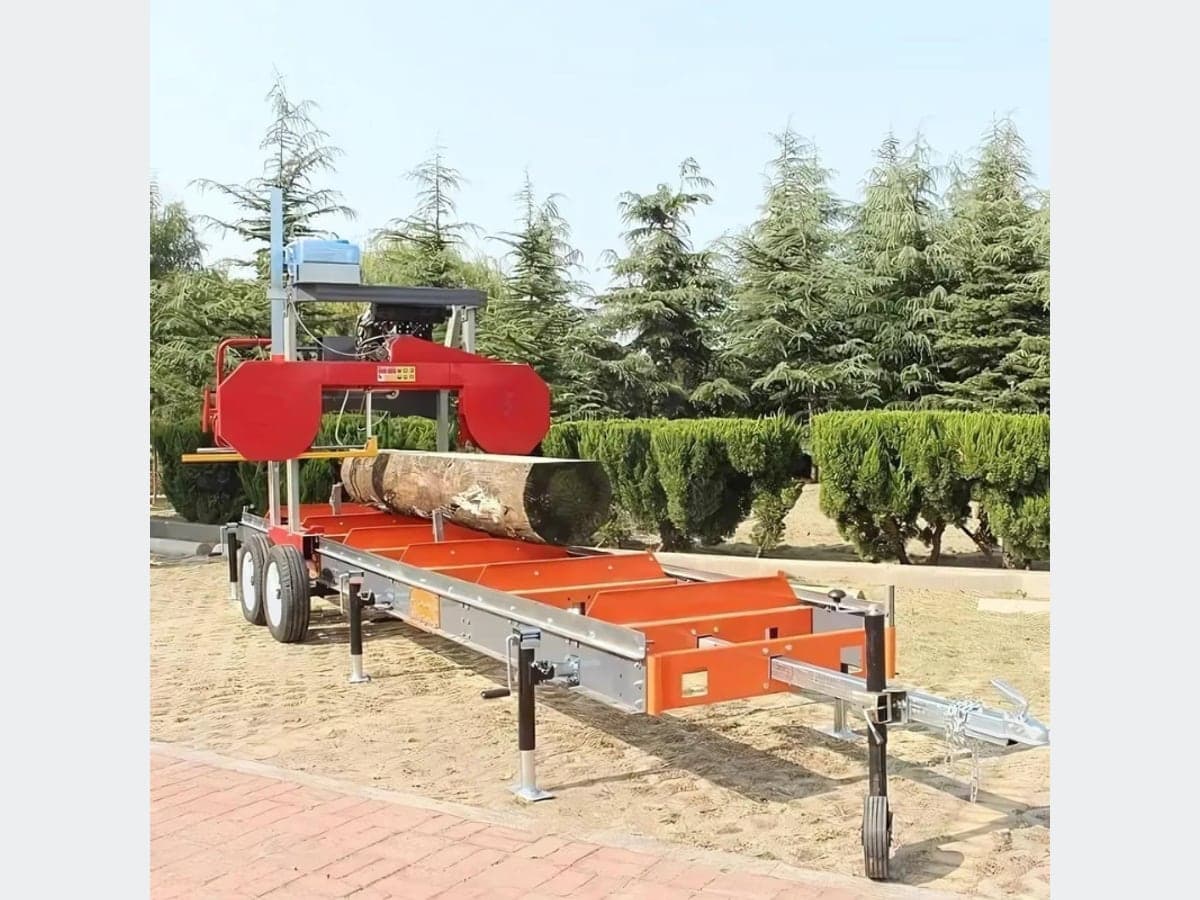

The RS360G is the production sawmill of the series. Its 4576 mm blade with 208 carbide teeth works through 910 mm logs over almost five metres, with automatic lubrication, an adjustable blade guide and a quick-lock log clamp. The frame splits into four sections to move between sites.
Who it is for
For contract sawyers, forestry contractors and carpenters milling week in, week out, for whom downtime costs more than the machine.
In practice
On structural beams or cladding in series, the difference is in the details: automatic lubrication keeps the blade tracking straight for longer, and the quick clamp saves a few minutes on every log. Over a day, that is one more pass.
Technical specifications
Cutting
- Maximum log diameter
- 910mm
- Maximum log length
- 4,800mm
- Cutting capacity (Ø × h × L)
- 910 × 380 × 4800 mm
- Blade (L × W × T)
- 4576 × 40 × 0,9 mm
- Blade teeth
- 208
- Tooth type
- Carbide teeth
- Tooth spacing
- 22mm
- Bandwheel diameter
- 508mm
- Cutting speed
- 20–30 s/m
- Track (L × W)
- 6000 × 1010 mm
Engine
- Engine
- Honda GX630
- Engine type
- 4-stroke petrol
- Engine power
- 20.8hp
- Displacement
- 688cc
- Starting
- Electric
Equipment
- Lubrication
- Automatic
- Blade guide
- Adjustable
- Log clamp
- Quick-lock
Dimensions and weight
- Frame sections
- 4
- Weight
- 722–782kg
- Packed dimensions
- 2080 × 750 × 1050 mm
Gallery
Options
Blade sharpener
A blade is sharpened several times before it is replaced. The sharpener pays for itself by the second season on a mill in regular use.
Track extension
Extends milling capacity beyond the standard length. It fits and comes apart like the other frame sections.
Winch and log turner
Load and turn a log without carrying it. On large timber, this decides whether a mill is a one-person or a two-person job.
Documents
Documents for this machine are being prepared. Ask for them by phone or through the quote form.
Request a quote
Tell us what you want to produce: a technician will call you back with a priced proposal, the options worth having and realistic lead times.
Or call us+33 5 54 54 70 74
