CUTCRAFT FS22T

Vertical PTO log splitter, 22 tonnes, logs up to 700 mm.

Available · CC-FS22T

22t
Splitting force: 700mm
Maximum log height: 24s
Cycle time

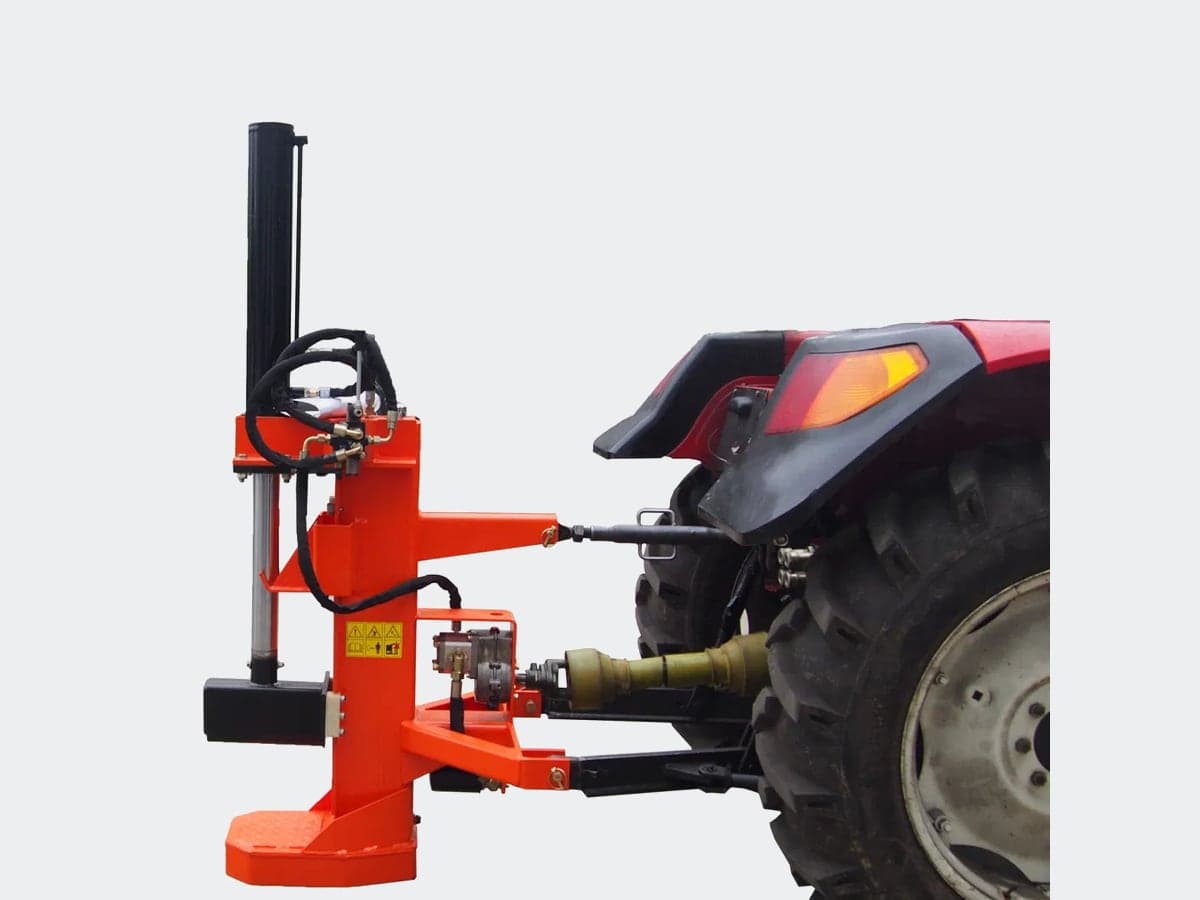

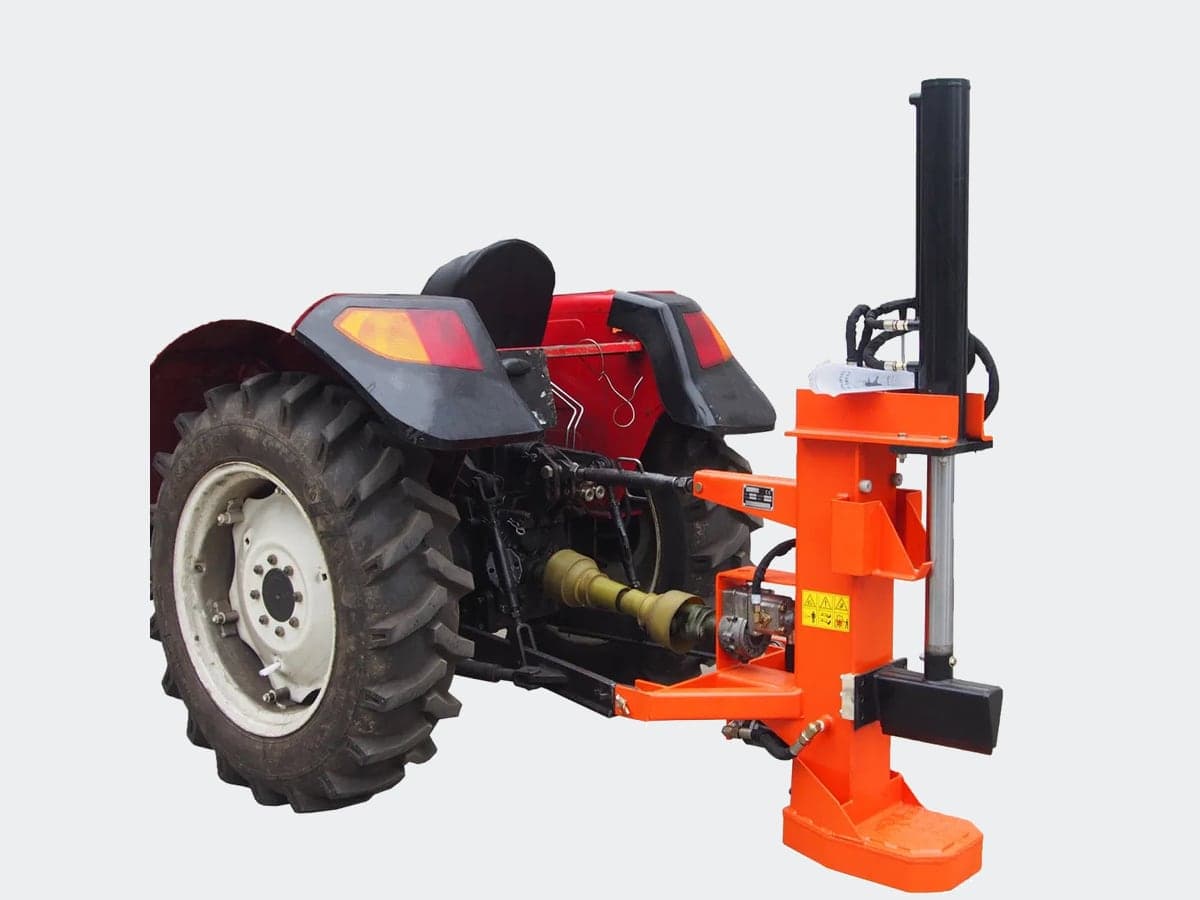

The FS22T mounts on the three-point hitch and works vertically: the log stands on the ground and is never lifted. Twenty-two tonnes of thrust, a 150 mm ram, a 100-litre circuit at 21 MPa and a two-stage pump for a 24-second cycle.

Who it is for

For farmers and forest owners with a 15 to 55 hp tractor, splitting heavy timber they would rather not handle.

In practice

A 60 cm oak round weighs over 80 kg: on a horizontal splitter it has to be lifted. Vertically, you tip it on the ground and split it standing. It is the right choice for heavy, knotty wood.

Technical specifications

Splitting

Splitting force: 22t
Working position: Vertical
Maximum log height: 700mm
Cycle time: 24s
Cylinder bore: 150mm

Hydraulics

Pump: Two-stage pump
Hydraulic flow: 41.6L/min
Working pressure: 21MPa
Hydraulic tank: 100L

Engine

Power supply: Tractor PTO
Required tractor power: 15–55hp
Hitch: Three-point hitch

Dimensions and weight

Dimensions (L × W × H): 490 × 1300 × 1940 mm
Weight: 210kg

Gallery

Options

WM1200 — 180 kg hydraulic log lifter
CC-WM1200
Lifts up to 180 kg to table height, with an integrated rotator. It solves the real problem of a day's splitting: it is not the machine that tires, it is the operator doing the lifting.
