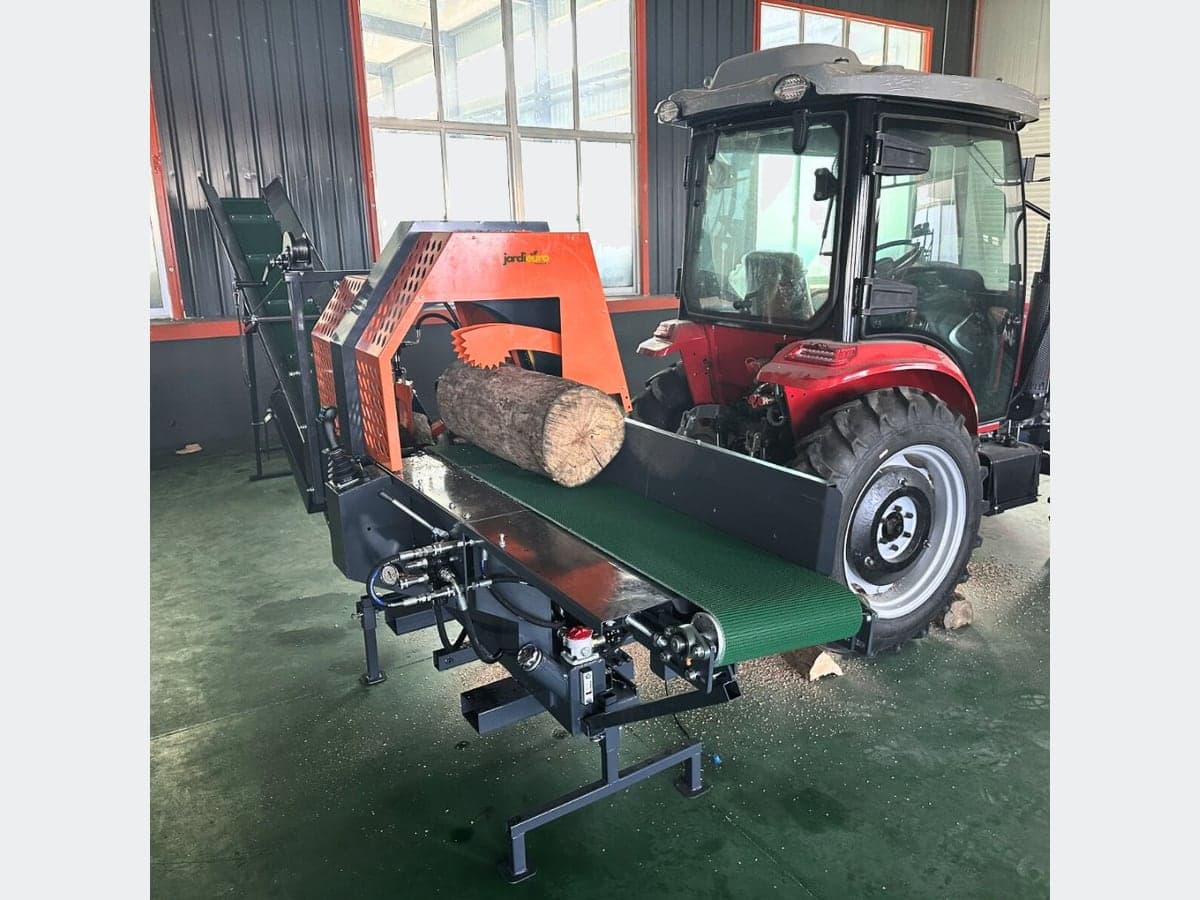

CUTCRAFT WoodMax PTO 30T

The PTO version of the 30T: six cubic metres an hour, no engine.

Available · CC-WMP30T

50cm
Maximum log diameter: 30t
Splitting force: 6cu. m/h
Output

The WoodMax PTO 30T delivers the 30 tonnes and the six cubic metres an hour of the petrol model, driven by the tractor. A 1.8 m hydraulic infeed, 4, 6 or 8 way knife, 3.5 m conveyor, joystick controls and 50 cm capacity.

Who it is for

For agricultural contractors and forestry businesses already working with a tractor, looking for production output without a second engine to look after.

In practice

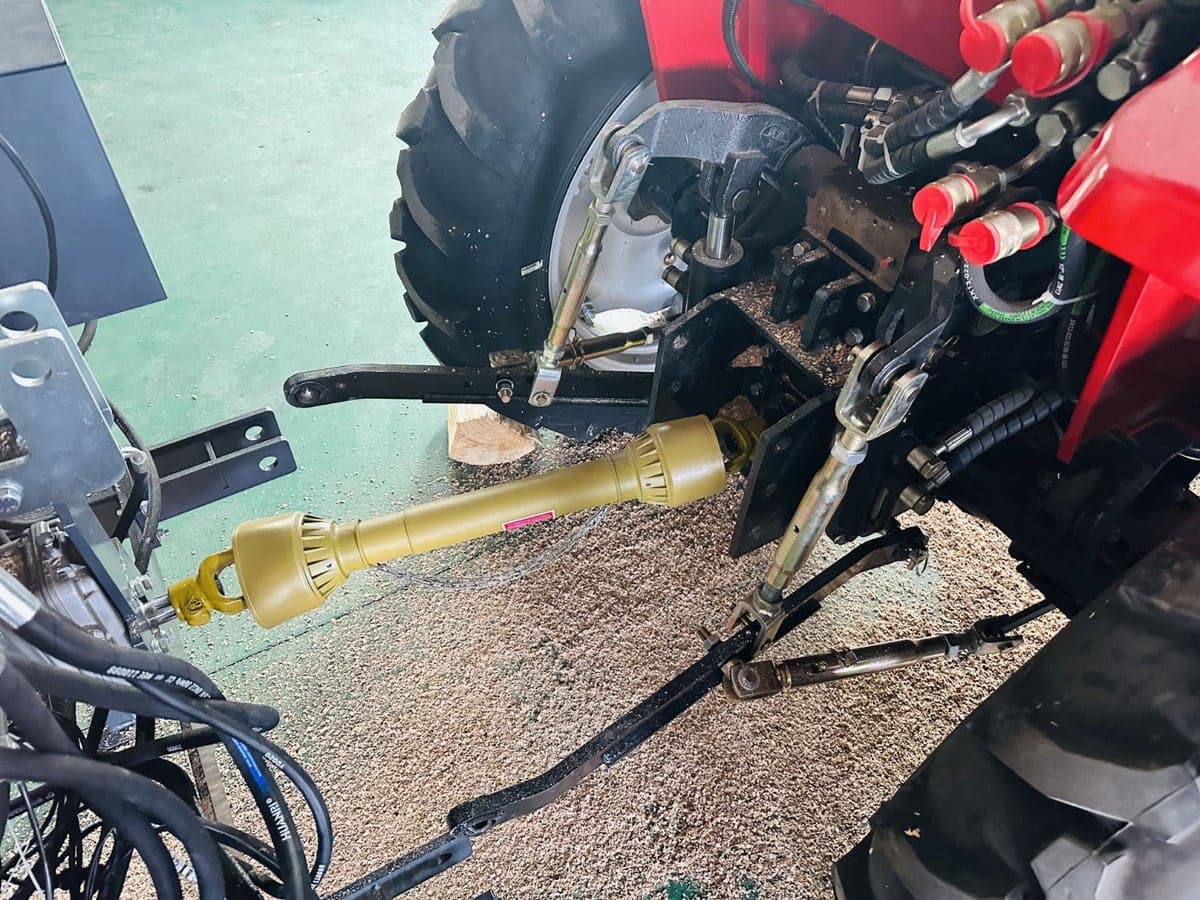

On a day's work, tractor and processor move from one stack to the next without unhooking anything. The 8 way knife earns its place as soon as you deliver 33 cm splits in volume.

Technical specifications

Engine

Power supply: Tractor PTO

Splitting

Splitting force: 30t
Splitting knife: 4, 6 or 8 way
Output: 6cu. m/h

Cutting

Maximum log diameter: 50cm
Cutting length: 50cm

Equipment

Infeed conveyor: 1800 × 390 mm
Outfeed conveyor: 3.5m
Belt width: 300mm
Controls: Ergonomic joystick

Dimensions and weight

Dimensions (L × W × H): 350 × 200 × 220 cm
Weight: 950kg

Gallery

Options

4-way splitting knife — 30 t
CC-KN4-30T
The configuration to choose on large, knotty diameters: fewer ways, more force available per split.
6-way splitting knife — 30 t
CC-KN6-30T
The usual production compromise: six splits per stroke with 30 tonnes behind, leaving margin on irregular timber.
8-way splitting knife — 30 t
CC-KN8-30T
For 33 cm splits delivered in volume. Keep it for straight timber of even diameter: eight ways through a big knotty round will stall even 30 tonnes.
WM1200 — 180 kg hydraulic log lifter
CC-WM1200
Lifts up to 180 kg to table height, with an integrated rotator. It solves the real problem of a day's splitting: it is not the machine that tires, it is the operator doing the lifting.
