CUTCRAFT WoodMax PTO 20T

The whole chain on the PTO of a 15 to 50 hp tractor.

Available · CC-WMP20T

48cm
Maximum log diameter: 20t
Splitting force: 6s
Cycle time

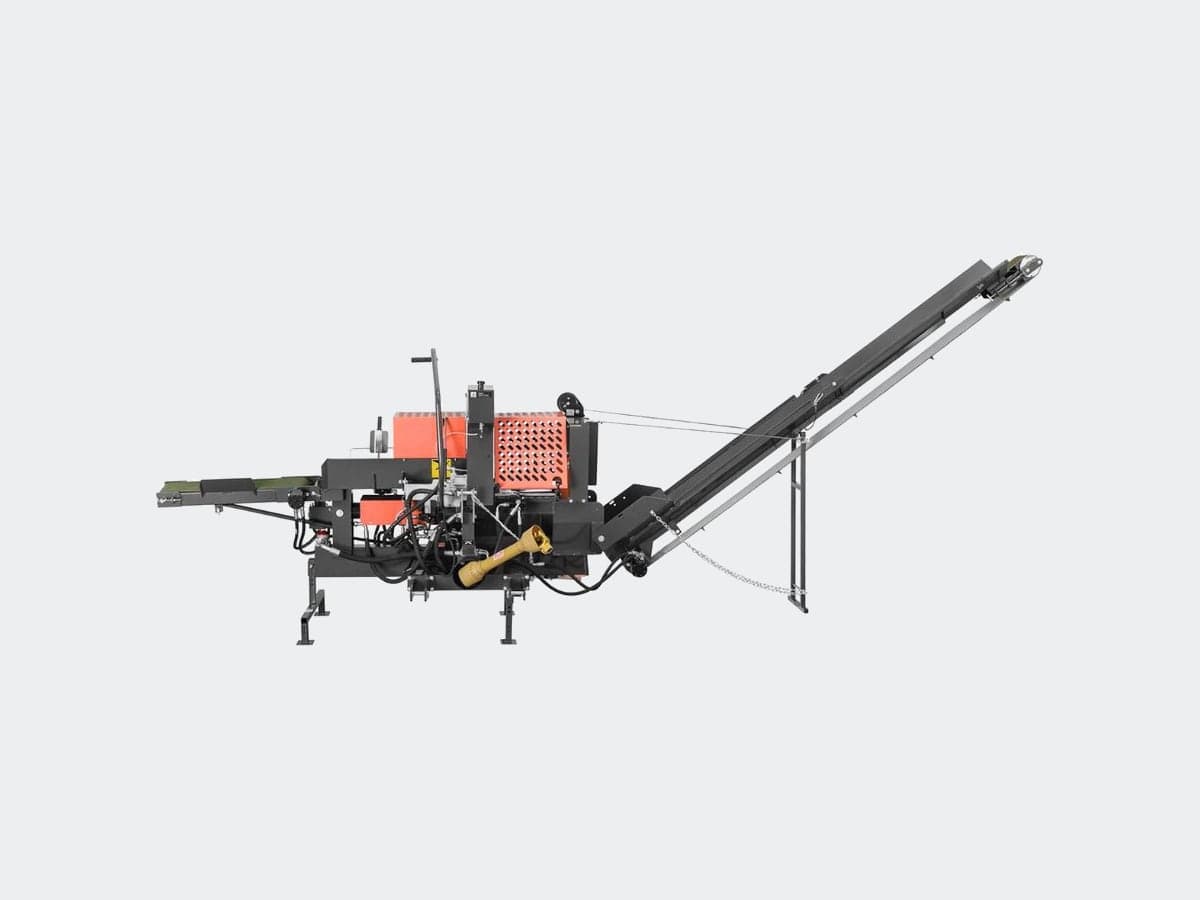

The WoodMax PTO 20T runs off the power take-off at 540 rpm and carries no engine of its own. A 55 cm cut, 48 cm capacity, 20 tonnes of splitting force with a 6 way knife, a six-second cycle, a 2 m hydraulic infeed and a 3.2 m outfeed conveyor.

Who it is for

For holdings that already run a tractor and would rather not maintain another engine.

In practice

A 40 hp tractor is more than enough. You drop one service schedule, one fuel tank and one cold start, and you move the whole rig around the plot on the hitch. In return, the tractor is tied up for the session.

Technical specifications

Engine

Power supply: Tractor PTO
Required tractor power: 15–50hp
PTO speed: 540rpm

Splitting

Splitting force: 20t
Splitting knife: 6 way
Cycle time: 6s

Cutting

Maximum log diameter: 48cm
Cutting length: 55cm
Chainsaw bar: 50cm

Equipment

Infeed conveyor: 2m
Outfeed conveyor: 3.2m
Belt width: 250mm

Dimensions and weight

Dimensions (L × W × H): 320 × 150 × 200 cm
Weight: 550kg

Gallery

Options

4-way splitting knife — 20 t
CC-KN4-20T
Four splits per stroke on medium sections. This is the knife fitted as standard, and the one that suits most open-fire firewood deliveries.
6-way splitting knife — 20 t
CC-KN6-20T
Six splits per stroke, for smaller stove wood. The gain in rate is clear on regular rounds; on knotty timber, 20 tonnes starts to show.
WM1200 — 180 kg hydraulic log lifter
CC-WM1200
Lifts up to 180 kg to table height, with an integrated rotator. It solves the real problem of a day's splitting: it is not the machine that tires, it is the operator doing the lifting.
